Home >Product>CNC Hydraulic Press>8-Column Hydraulic Press>Details

2000T H-frame Double Action Steel Door Embossing Hydraulic Press Machine

Product model：Yz90

Product number：20

Feature：

Movable Table, Displacement Sensor, Knocking Device, Mould Exchanging Trolley, Cooling Device, Cushion Device, Photo-electric Safety Device System Oil Heating Device, Industrial Touch Screen, Automati

Details

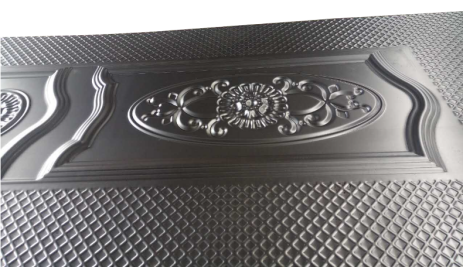

DOOR EMBOSSING HYDRAULIC PRESS

Yz90 Series

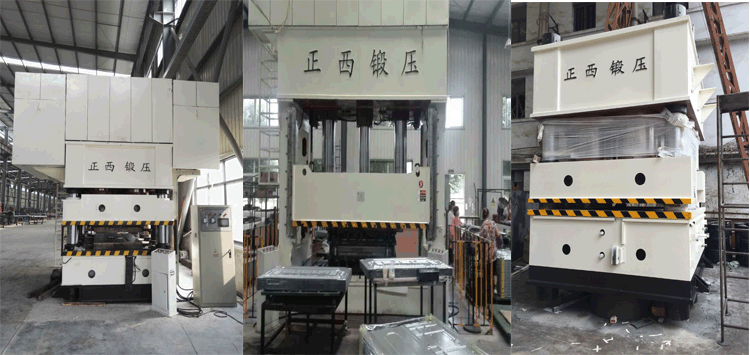

MACHINE APPEARANCE

DATA SHEET

Single action:

Parameter		unit	Yz90-800T	Yz90-1200T	Yz90-1500T	Yz90-2000T	Yz90-2800T	Yz90-3600T
Nominal Force		KN	8000	12000	28000	36000	28000	36000
Max working pressure of liquid		MPA	25	25	25	25	25	26
Effective table size	Left and right	mm	1300	1300	1300	1300	1400	1600
Effective table size	Front and back	mm	2200	2200	2200	2200	2400	2600
Blank holder stroke		mm	400	400	400	400	400	400
Maximum open height		mm	500	500	500	500	500	500
Slider speed	down	mm/s	100	100	100	100	100	120
	Work	mm/s	18	18	15	10	10	10
	Back	mm/s	80	80	80	80	80	100
Motor power		KW	30	37	37	45	60	90

Double action:

Parameter		unit	Yz90-1200T	Yz90-1500T	Yz90-2000T	Yz90-2800T	Yz90-3600T
Nominal Force		KN	12000	15000	20000	28000	36000
Ejecting force		KN	6000	7000	8000	10000	12000
Max working pressure of liquid		MPA	25	25	25	25	26
Effective table size	Left and right	mm	1300	1300	1300	1400	1600
Effective table size	Front and back	mm	2200	2200	2200	2400	2600
Blank holder stroke		mm	400	400	400	400	400
Ejection stroke		mm	100	100	100	100	100
Maximum open height		mm	500	500	500	500	500
Slider speed	down	mm/s	80-120	80-120	80-120	80-120	80-120
	Work	mm/s	20	17	15	15	15
	Back	mm/s	100	100	100	100	100
Motor power		KW	37	37	44	60	90

ACCESSORY BRAND
